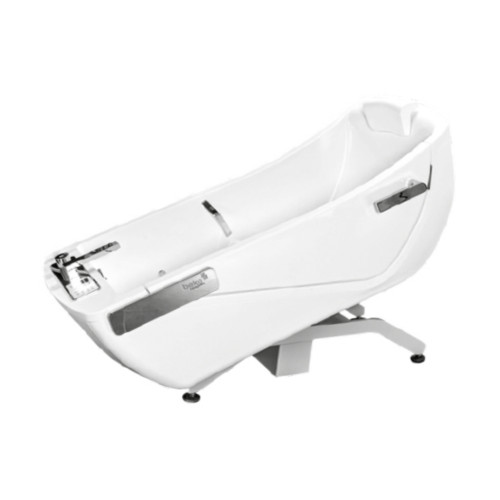

The Astor Motion G is a fully height-adjustable and reclining bathing system designed for safe, dignified bathing with maximum comfort and support. With its revolutionary tilt-in-space function, the Motion G allows the bather to be gently reclined while remaining securely supported, ideal for those with complex needs or reduced mobility.
Its spacious, lip-free side entry door ensures easy transfers for wheelchair users or those using a hoist. The large pre-fillable footwell provides immediate immersion, reducing exposure time and maintaining temperature. Fast fill and drain technology further enhance the user experience and efficiency for carers.
Standard fittings include the Kiwa KUKReg4 approved shower gantry system with TMV3 temperature control and integrated Category 5 backflow protection. Optional sensory enhancements such as air spa, Bluetooth audio, and LED lighting offer a relaxing, therapeutic experience.
Core Features & Benefits
- Tilt-in-space reclining bath with up to 23° recline angle
- Height adjustable from 810 mm – 1010 mm
- Lip-free side door for safe and easy access
- Pre-fillable footwell (98 litres) for immediate immersion
- Fast fill and rapid drain – 66L/min fill and 75L/min drain
- Showersafe gantry system with Kiwa KUKReg4 certification (Cat 5)
- Separate TMV3 controls for bath and shower
- Emergency battery backup as standard
- Integrated internal seat for comfort and positioning
- Contemporary design with ergonomic layout
Applications
- Care homes and residential care environments
- Supported living and multi-user bathing facilities
- Hospitals and rehabilitation centres
- Specialist care for people with complex or neurological conditions
- Therapeutic bathing and hydrotherapy support
Construction & Hygiene Design
The Astor Motion G is built using robust, thermally efficient GRP construction with smooth internal surfaces for ease of cleaning and hygiene. The spacious footwell and integrated seat promote user comfort while simplifying transfer and bathing routines. The design allows full hoist access underneath for safe transfers and supports best practice in infection control.
Technical Specifications
| Bath Dimensions | |
|---|---|
| Length (entry position) | 1760 mm |
| Length (lying position) | 1908 mm |
| Width | 860 mm |
| Height range (front) | 810 mm – 1010 mm |
| Height range (rear) | 985 mm – 1185 mm |
| Entrance height | 490 mm – 690 mm |
| Weight (unpacked) | Approx. 175 kg |
| Tub capacity (no patient) | Approx. 270 litres |
| Tub capacity (with patient) | 185 litres |
| Footwell prefill volume | 98 litres |
| Maximum Working Load | 300 kg (patient + water) |
| Performance Data | |
|---|---|
| Drain rate | 75 litres/minute |
| Fill rate | 66 litres/minute |
| Inclination angle | 23° maximum |
| Hoist clearance | 200 mm |
| Plumbing Requirements | |
|---|---|
| Water pressure (min/max) | 1 bar / 10 bar |
| Max pressure ratio | 5:1 (cold:hot) |
| Waste outlet | To 50 mm OD pipe, max 80 mm from floor |
| Isolation valves | 22 mm ball type |
| Valve max height | 300 mm from floor |
| Electrical Specifications | |
|---|---|
| Power supply | 230 V AC / 50 Hz |
| Power input | 5 A |
| Current consumption | Approx. 1150 VA |
| Required connection | Fused spur with waterproof flex outlet |
Standard Features
- Tilt-in-space reclining bath (23° angle)
- Height adjustable from 810 mm – 1010 mm
- Side entry door with safety lock
- Internal contoured seat for bather support
- Fast fill and drain technology
- Emergency battery backup
- Chrome safety grab handles
- Kiwa KUKReg4 approved gantry with TMV3 controls
- CE marked and tested to ISO 9001 quality standards
- 3-year warranty (Terms and conditions apply)
Optional Extras
- Air spa system
- LED colour-changing lighting
- Bluetooth integrated music/sound system
- Adjustable internal footboard
- Head, neck, and trunk support cushions
- Custom service and maintenance packages
- Alternative colour options available
Model Variants
- Standard Model (Tilt-in-Space)
Warranty and Support
The Astor Motion G is supplied with a 3-year warranty as standard, subject to terms and conditions. Tailored service and support plans are available for high-usage and critical care environments.
