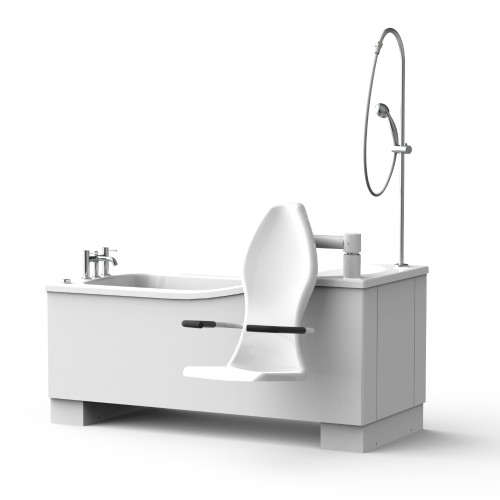

The Astor Compact Pure is a high-specification, cost-effective, and rapidly available solution for care environments in need of a quick and reliable bathing replacement. This height adjustable bath is specifically designed for care homes and supported living facilities, where maintaining hygiene, comfort, and carer efficiency are essential.
Unlike traditional bath installations, the Compact Pure is available off-the-shelf and can be delivered within 7 days* of ordering. It is supplied fully assembled, simplifying the installation process and enabling rapid deployment by in-house maintenance or external installers.
Features & Benefits
- Height adjustable bathtub for reduced carer strain and improved access
- Integrated powered seat with lap strap, nursing arms and obstacle detection
- Ergonomic, non-detachable seat design for safe and comfortable transfers
- Unique internal bath contouring to support the bather and enhance comfort
- Smooth, easy-clean surfaces to optimise hygiene and infection control
- Cat 5 compliant with Kiwa KUKReg4 approved gantry system
- Separate TMV3 temperature regulation for tap and shower controls
- Ideal for care homes, respite centres, and multi-user bathing environments
- Delivered complete, ready to plumb in, saving installation time and cost
Applications
- Residential care homes
- Supported living environments
- Hospice and palliative care facilities
- Specialist disability housing
- Emergency replacement scenarios
Construction & Hygiene Design
The Compact Pure features a robust construction using high-quality materials including acrylic plastic, ABS plastic, GRP, stainless steel, and mild steel. All materials have been selected to ensure durability, corrosion resistance, and ease of cleaning in demanding care environments.
The internal shape of the bath provides a spacious but supportive bathing experience, while also allowing for thorough cleaning between uses—key to maintaining hygiene standards in communal care settings.
Technical Specifications
| Bath Dimensions | |
|---|---|
| Length | 1700 mm |
| Width | 750 mm |
| Width with seat out | 1409 mm |
| Height (tub adjustment range) | 680 mm – 980 mm |
| Seat height range | 425 mm – 925 mm |
| Height with gantry | 1905 mm – 2205 mm |
| Weight (without water) | Approx. 133 kg |
| Water capacity | Approx. 215 L |
| Performance Data | |
|---|---|
| Maximum working load (seat) | 125 kg / 20 st |
| Maximum working load (tub) | 280 kg |
| Noise level | LAeq 56.2 dB |
| Operating temperature | 5 °C to 40 °C |
| Operating humidity | 20% – 80%, non-condensing |
| Atmospheric pressure range | 700 to 1060 hPa |
| Altitude | Max 3000 m above sea level |
| Water pressure | Min: 1 bar, Max: 5 bar (equal across hot and cold) |
| Electrical Specifications | |
|---|---|
| AC input | 100–240 VAC, 50/60 Hz (-15% / +10%), 420 VA |
| DC output | 42 VDC, 10 A |
| Standby power | Approx. 0.5 W |
| Protection class | Class I |
| Applied part | Type B |
| Fuses | 10 A (external, for fused spur) |
| Duty cycle | 10% (Max 2 min ON, 18 min OFF) |
| IP class | IPX4 |
Standard Features
- Powered transfer seat with obstacle detection and secure lap strap
- Bath tap and shower with separate TMV3 temperature controls
- Cat 5 compliant with Kiwa KUKReg4 gantry for backflow protection
- Emergency stop safety feature
- Quick installation and serviceability
- Designed for high-frequency, multi-user environments
Model Variants
- Left-hand fixed seat
- Right-hand fixed seat
Warranty and Support
Supplied with a 1-year warranty as standard. Optional service and extended warranty packages may be available depending on supplier.
*7-day delivery subject to availability and ordering conditions.
