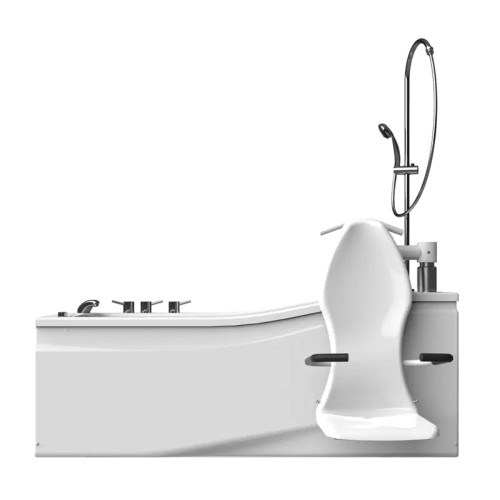

The Astor Compact Fixed is a cost-effective, high-quality fixed-height bath designed specifically for care home environments. Retaining the ergonomic shape and premium build of the Compact range, this model delivers comfort, safety, and hygiene without the need for height adjustability. Available in two lengths, 1600 mm and 1700 mm, it’s ideal for smaller bathrooms or en-suites where space is limited.
The integrated powered seat ensures safe and comfortable transfers, featuring clip-on lap straps, nursing armrests, and an integrated obstacle detection system for user protection. A detachable seat version is also available for compatibility with a seat transfer trolley, enabling smooth room-to-bathroom transfers. When not in use, a comfortable headrest can be fitted for a relaxed, independent bathing experience.
The bath’s sculpted internal shape supports the bather in a semi-reclined position and allows for full water immersion. Its smooth, clean lines simplify cleaning and promote excellent hygiene control.
Core Features & Benefits
- Fixed height bath for cost-effective installation and space efficiency
- Integrated powered seat with lap strap, nursing arms, and obstacle detection sensor
- Detachable seat option with headrest and transfer trolley compatibility
- Shaped seat for improved carer access and bather comfort, including commode seat compatibility
- Multi-layer GRP panels and stainless steel construction for durability
- Hygienic design with smooth, easy-clean surfaces
- Showersafe gantry system with Kiwa KUKReg4 approval for Cat 5 backflow protection
- TMV3 temperature control for both shower and bath filler
- Available in two lengths: 1600 mm or 1700 mm to suit space requirements
Applications
- Residential care homes
- Rehabilitation and respite centres
- Supported living environments
- Specialist disability housing
- Multi-user and high-frequency bathing scenarios
Construction & Hygiene Design
The Compact Fixed is built with hygiene and durability in mind. Its robust GRP panels feature a twin gel-coated finish for resistance to moisture ingress and daily wear. The bath’s ergonomic interior design promotes comfort while maintaining high standards of cleanliness and ease of maintenance in demanding care environments.
Technical Specifications
| Bath Dimensions | |
|---|---|
| Length options | 1600 mm or 1700 mm |
| Width | 750 mm |
| Width with chair out | 1420 mm |
| Weight without water (1600 mm) | Approx. 118 kg |
| Weight without water (1700 mm) | Approx. 133 kg |
| Water capacity (1600 mm) | Approx. 215 L |
| Water capacity (1700 mm) | Approx. 195 L |
| Performance Data | |
|---|---|
| Maximum seat load | 150 kg / 24 st |
| Max working load (1600 mm) | 478 kg (user, bath & water) |
| Max working load (1700 mm) | 508 kg (user, bath & water) |
| Noise level | Complies with care environment standards |
| Operating temperature | 10 °C to 40 °C |
| Operating humidity | 30% – 95%, non-condensing |
| Atmospheric pressure | 800 – 1060 hPa |
| Water pressure | Min: 1 bar, Max: 5 bar (equal for hot and cold) |
| Electrical Specifications | |
|---|---|
| Power connection | 230 V, 50 Hz |
| Power consumption | Max. 1.25 kW |
| DC output | 24 V, 8 A |
| Protection class | Class I |
| Applied part | Type B |
| Duty cycle | 10% (Max 2 min ON, 18 min OFF) |
| Operating mode | Short-term operation |
| Storage & Transport Conditions | |
|---|---|
| Temperature range | 5 °C to 70 °C |
| Relative humidity | 10% to 80%, no condensation at 20 °C |
| Atmospheric pressure | 50 kPa to 106 kPa |
Standard Features
- Fixed height bath design
- Powered seat with lap strap, nursing arms and obstacle sensor
- Robust GRP panels and stainless steel construction
- Bath filler with separate TMV3 temperature control
- Kiwa KUKReg4 approved Showersafe gantry (Cat 5 backflow protection)
- Emergency battery backup
- Available in 1600 mm or 1700 mm lengths
- 3 Year warranty (Terms and conditions apply)
Optional Extras
- Air spa system
- Bluetooth audio system
- Colour-changing LED lighting
- Detachable seat system with headrest
- Seat transfer trolley
- Commode seat
- Autofill sensor to prevent overfilling
- Extra end and side panels
- Hoist access panels
- Custom service and warranty packages
Model Variants
- 1600 mm Fixed Seat
- 1700 mm Fixed Seat
- 1600 mm Detachable Seat
- 1700 mm Detachable Seat
Warranty and Support
Supplied with a 3 year warranty as standard (subject to terms and conditions). Custom maintenance and extended support packages are available upon request.
- 160cm / 63" or 170cm / 67"
- 75cm / 29.5"
- Astor
- 150kg
- 63cm / 24.5"
- 63cm / 24.5"
- Yes
- No
- No
- No
- Yes
- Yes
