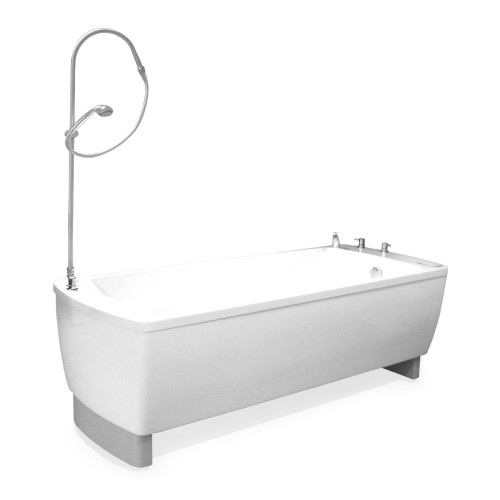

The Astor Comfort S is a height-adjustable bath designed to provide exceptional comfort, bariatric capacity, and sensory enrichment. With its sculpted, spacious interior and ergonomic footprint, the Comfort S is ideal for users who require additional space and support during bathing routines. It is fully hoist accessible and features a durable, thermally insulated twin-skinned tub for warmth and strength.
For a complete therapeutic experience, optional features such as a warm air spa system, integrated Bluetooth audio, and colour-changing LED lighting are available to create either a stimulating or calming atmosphere. A patented Neatfold stretcher can also be fitted to ease drying and changing tasks without requiring additional transfers.
Standard fittings include the Showersafe gantry system with Kiwa KUKReg4 approval for Category 5 backflow protection and TMV3 temperature control for both shower and bath filler. The bath is offered in a variety of colours and models, with left- and right-hand options available with or without handles.
Core Features & Benefits
- Height adjustable bath with 400 mm lift range (680 mm – 1080 mm)
- Generous internal space designed for bariatric use
- Twin-skinned insulated tub for durability and heat retention
- Fully hoist accessible for both floor and ceiling hoists
- Patented Neatfold stretcher compatible
- Showersafe gantry system with Kiwa KUKReg4 certification (Cat 5)
- Separate TMV3 controls for bath and shower outlets
- Emergency battery backup included
- Available with or without gantry
- Colour options available
Applications
- Care homes and residential settings
- Specialist bariatric care environments
- Supported living accommodation
- Multi-user and shared bathing facilities
- Therapeutic and sensory bathing applications
Construction & Hygiene Design
The Astor Comfort S features a twin-layer GRP construction for superior thermal insulation and hygiene. Its seamless internal design ensures ease of cleaning, supporting infection control practices in demanding care environments. The bath’s durable components are built to deliver long-term reliability under frequent use.
Technical Specifications
| Bath Dimensions | |
|---|---|
| Length | 2100 mm |
| Width | 800 mm |
| Height range | 680 mm – 1080 mm (400 mm travel) |
| Weight (unpacked) | 146 kg |
| Tub capacity | 295 litres |
| Maximum Working Load | 300 kg / 47¼ st |
| Performance Data | |
|---|---|
| Ingress protection | IP65 |
| Lifting output | 6000 Newtons |
| Duty cycle | 3 complete strokes |
| Expected lifetime | 10 years |
| Plumbing Requirements | |
|---|---|
| Isolation valves | Hot and cold, 22 mm ball type |
| Valve max height | 300 mm from floor |
| Waste outlet | To connect to 50 mm O.D., max 80 mm height from floor |
| Min water pressure | 1 bar |
| Max water pressure | 10 bar |
| Max pressure ratio | 5:1 (cold:hot) |
| Electrical Specifications | |
|---|---|
| Power supply | 230 V |
| Frequency | 50 Hz |
| Current consumption | 3 A |
| Required connection | 1.5 kW fused spur with waterproof flex outlet and 20 mm cable gland (1.5 mm² SY cable) |
Standard Features
- Height adjustable bath (680 mm – 1080 mm)
- Bariatric capacity (300 kg)
- Thermally insulated twin-skinned tub
- Showersafe gantry system with Category 5 protection
- Separate TMV3 controls for bath and shower
- Hoist accessible – ceiling and floor
- Emergency battery backup
- Fixed height models available (650 mm or 750 mm)
- 3-year warranty (Terms and conditions apply)
Optional Extras
- Warm air spa system
- LED colour-changing lighting
- Bluetooth integrated music/sound system
- Internal knee blocks / footboard
- Adjustable footplate (three-position)
- Head, neck and body support cushions
- Neatfold shower/changing stretcher
- Custom service and maintenance packages
- Available in a range of colour options
Model Variants
- With Gantry – No Handles
- With Gantry – No Handles
- With Gantry – With Handles
- With Gantry – With Handles
Warranty and Support
The Astor Comfort S comes with a 3-year warranty as standard, subject to terms and conditions. Extended service and support plans are also available to suit high-use and specialist care environments.
- 210cm / 82.5"
- 80cm / 31.5"
- Astor
- 300kg
- 68cm / 26.5"
- 108cm / 42.5"
- 40cm / 15.5"
- No
- No
- No
- No
- Yes
- No
