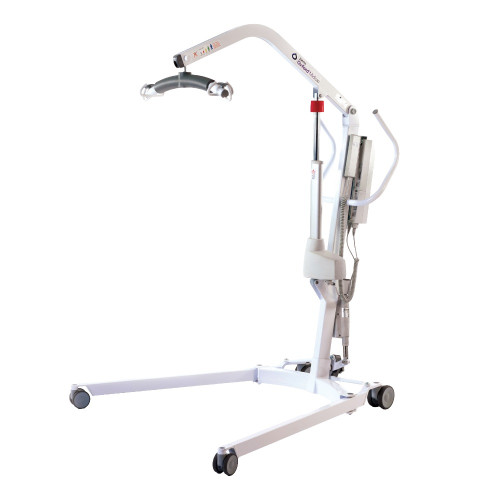

The Oxford Midi 180 Electric Leg hoist is a versatile industry standard across care homes and homecare environments, delivering impressive performance from a compact, space-efficient design. Engineered to meet the demands of both community and nursing settings, the Midi Electric Leg model combines robust lifting capability with enhanced manoeuvrability, making it particularly suitable where space is limited and precision positioning is required.
- 180kg / 28st safe working load
- Fully electric lift and electric leg adjustment
Key Product Features:
- Emergency raise and lower function - The emergency raise/lower buttons are located underneath the emergency stop button on the control box and can be operated by means of inserting a ball point pen tip. This can be used to lower/raise a patient should the hand control fail.
- LCD battery level indicator - As well as a visual display, the batteries are protected from deep discharge by a low voltage alarm. This will sound when the batteries need recharging and the hand control is being operated.
- Electric leg adjustment - The electrically operated leg spread is controlled directly from the handset, allowing smooth, precise positioning around armchairs, wheelchairs, and other furniture. This significantly reduces caregiver effort while improving handling control and patient comfort.
The Oxford Midi comes with a Smart Monitor which provides diagnostic and service controls.The Oxford Midi 180 Electric Leg also includes a complimentary stand-alone battery charger.
| Specification | Midi 180 Electric Leg |
|---|---|
| Safe Working Load | 180kg / 28st / 397Ibs |
| Length | 1225 mm |
| Maximum Overall Height | 1840 mm |
| Minimum Overall Height | 1240 mm |
| Maximum Spreader Bar Height | 1660 mm |
| Minimum Spreader Bar Height | 525 mm |
| Spreader Bar Height at Maximum Reach | 1060 mm |
| Spreader Bar Reach at Maximum Height | 420 mm |
| Spreader Bar Reach at Minimum Height | 440 mm |
| Maximum Reach | 656 mm |
| Turning Radius | 1235 mm |
| Legs Open – External Width | 1170 mm |
| Legs Open – Internal Width | 1070 mm |
| Legs Closed – External Width | 600 mm |
| Legs Closed – Internal Width | 540 mm |
| Overall Height of Legs | 100 mm |
| Ground Clearance | 25 mm |
| Front Twin Castors | 75 mm |
| Rear Braked Castors | 100 mm |
Safe Working Load (SWL)
- 180kg / 28st
Size
- Standard
Length
- 122.5cm / 48"
Width
- 60cm / 24"
Height
- 44cm / 18"
Brand
- Oxford
